The Platinum range

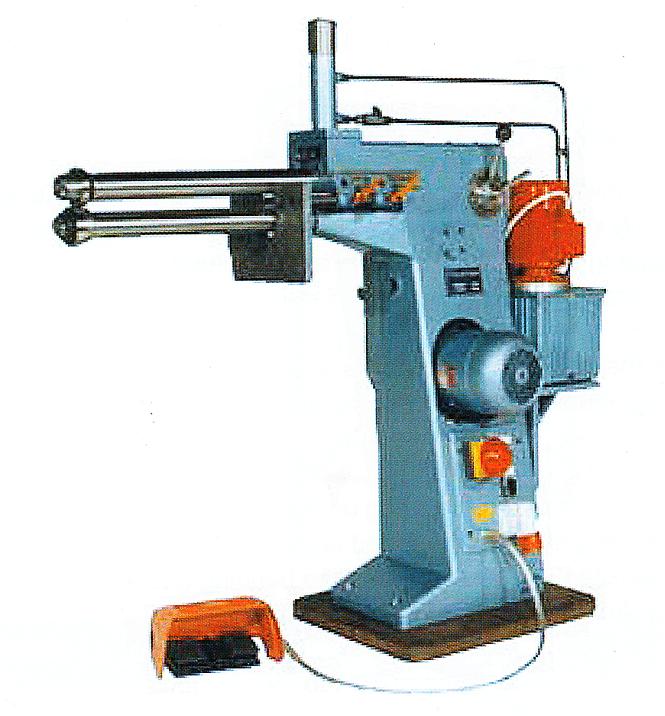

Pipe cutting machine Model: SMA 80

The SMA 80 SK has been designed for cutting welded stainless steel pipes to length. It is powered by a pole changing motor (thermally protected) via V-belt and worm gear running in the oil bath. The optimal run-through speed can be selected from 4 differenct working speeds. Due to being equipped with a large base plate this machine can be set up without any additional fixings. The height of the top shaft is adjusted by means of the hydraulic driving power. Adustable stops on the hydraulic cylinder limit the path of the top shaft. A cut with low contortion is guaranteed by supporting rings on the bottom shaft (behind the special cutter roller)


Sheet thickness (stainless steel) 0.4 - 1.0m
Smallest pipe diameter 100mm

For more detailed specification and quotations please contact the CMZ sales team
